type 89-006

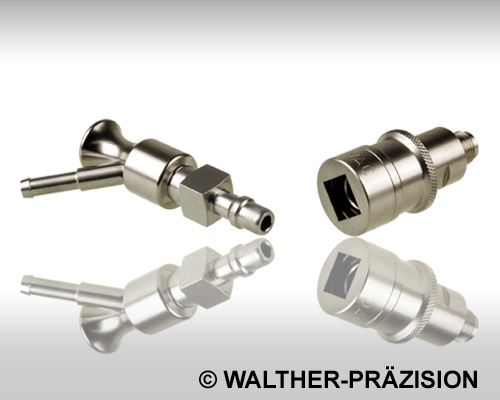

Screw type and plug type couplings for medical gas supply according to country specific standards

Type:

89-006

Nominal bore:

6 mm

Media:

air, oxygen, nitrous oxide, carbon dioxide, vacuum

Working pressure:

up to 35 bar / 507 psi

Materials:

brass nickel plated, aluminium nickel plated, stainless steel 1.4404/1.4571, PVDF (valve)

Special Features / Options:

specific design for each gas; non-interchangeable by uniquely shaped fitting angle plug available with/without check valve

• robust construction
• simple hose mounting (pressing) possible
• couplings can be delivered with different end connections

– DIN 13 260 (Germany)
– SS 87 524 30 (Sweden)
– BS 5682 (Great Britain)
– NF 90-116 (France)
– UNI 9507 (Italiy)

Applications:

For the supply of hospital beds, operating rooms, intensive care units etc. with medical gases
