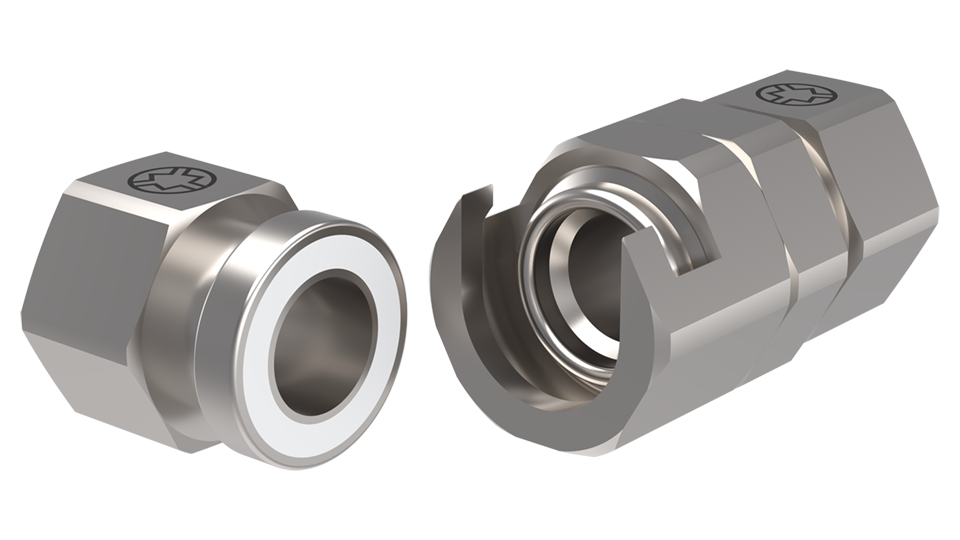

screw type couplings series EH

Low pressure quick coupling system without valves, for a wide range of applications, for the transmission of fluid or pasty media in an industrial / commercial environment.

Hook-in coupling

Types:

EH-025, EH-050, EH-080

Nominal bores:

25, 50 and 80 mm (additional sizes  up to 300 mm on request)

Working pressure:

up to 50 bar / 725 psi

Media:

for gas, liquid, paste, powder and pellet-shaped substances

Materials:

stainless steel 1.4404 / 1.4571 or similar

Special Features / Options:

simple hook-in screw-type coupling in extremely short design, usable with limited movability, easy cleaning and maintenance: piggable and CIP / SIP capable.
