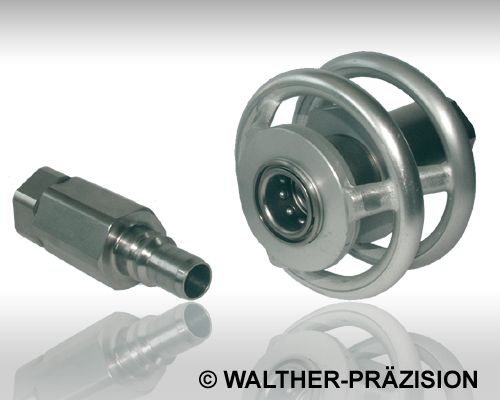

quick couplings with PTFE seals series TE

Extreme temperature quick coupling system for the transmission of fluid media in an industrial/commercial environment, especially for the chemical industry.

Types:

TE-009, TE-012, TE-019, TE-032, TE-050

Nominal bores:

9, 12, 19, 32, 50 mm

Media:

Broad spectrum of aggressive liquids

Working pressure:

dependent on nominal bores and material up to 100 bar (1,450 psi)

Materials:

stainless steel 1.4404, passivated brass, chemically nickel-plated steel

Special features / options:

• all seals made from PTFE
• suitable for low temperatures down to -196 °C / -320 °F and suitable for high temperatures up to 250 °C / 482 °F
• equipped with ring grips for easier operation as of size 32
